API Clients

Note: Only users with an Administrator role can add and manage API clients.

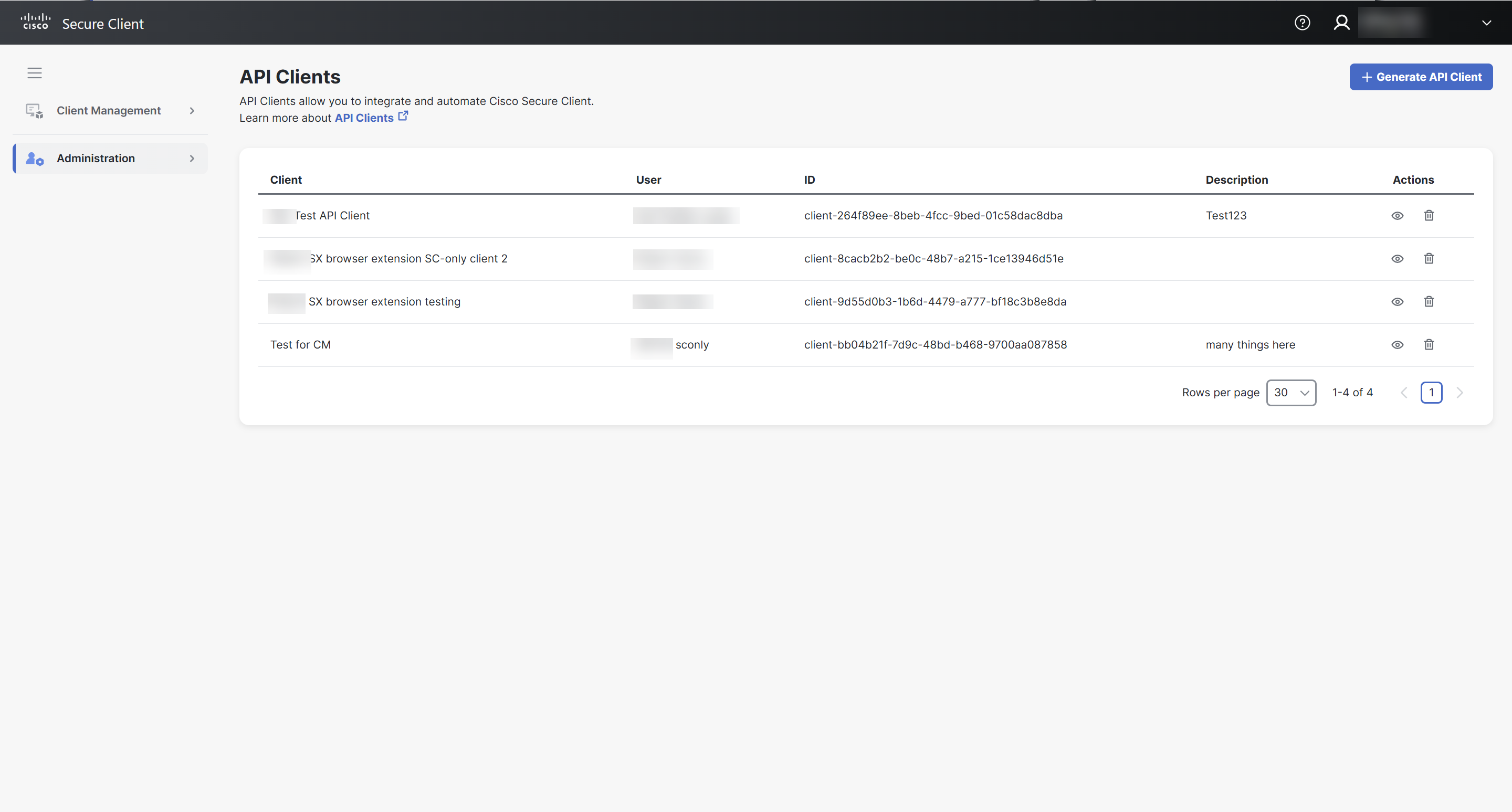

The API Clients page allows you to view and manage the clients you have configured for integration with Secure Client Cloud Management.

You can generate credentials to access the APIs programmatically for the following types of clients:

  • API Client Credentials - (Client Credentials Grant Client) are specific to the user, and you do not need to own a website.

  • OAuth Code Client Credentials - (Authorization Code Grant Client) are used to ask other users to trust your application, and you need a website to host your application.

    OAuth Code Client credentials are often used by Cisco to integrate on-premises devices or by advanced users who are building an integration with Secure Client Cloud Management.

  1. Choose Administration > API Clients in the navigation menu and click Generate API Client.

    Add New Client Form

  2. Enter a Client Name and optionally, choose a Client Preset from the drop-down list.

    Note: If you choose a Client Preset, all of the scopes are pre-configured for a particular function.

  3. If you did not choose a Client Preset, check the check boxes for the scopes for which you want to grant privileges to the client. You can also click Select All to grant all scopes to the client.

    • To create API clients to be leveraged for Orbital (a feature of Cisco Secure Endpoint), make sure to check the Orbital scope.

    • To create API clients to be leveraged for Secure Endpoint, check at least one scope (any scope works).

  4. Optionally, enter a description in the Description field and click Add New Client.

    The Client Id and Client Password are generated and are displayed in the Add New Client dialog box.

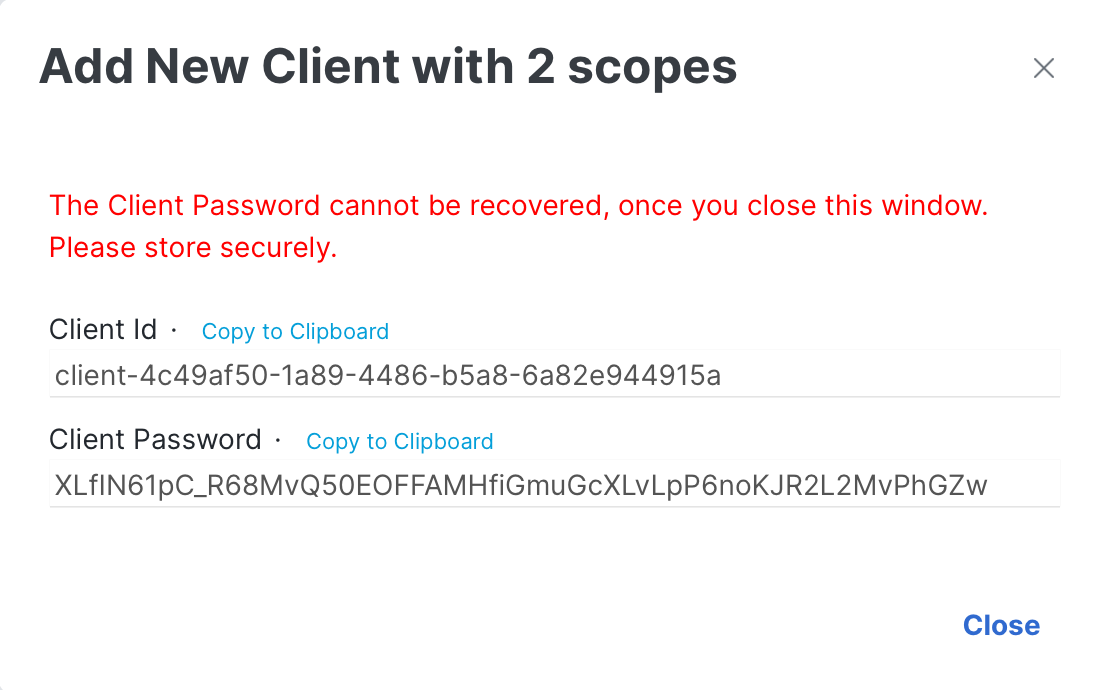

    Client Id and Password

    Note: The Client Password cannot be recovered after you close the window. Be sure to securely store it where you have access to it later, if needed. If you lose or disclose the client password, you must delete the API client and create a new one.

    The API Client is tied to your user identity. If your user identity loses privileges, then your API Client will also lose those privileges. All actions taken by the API Client will be done in your name, and recorded as your actions. If your access to the application is revoked, then your API Client will no longer be valid.

Note: When creating an OAuth Code Client, there is an auto-approve feature if all criteria is met. If some criteria is not met, the client is created but disabled until it has been approved by an Admin.

  1. Choose Administration > API Clients in the navigation menu and click Generate API Client.

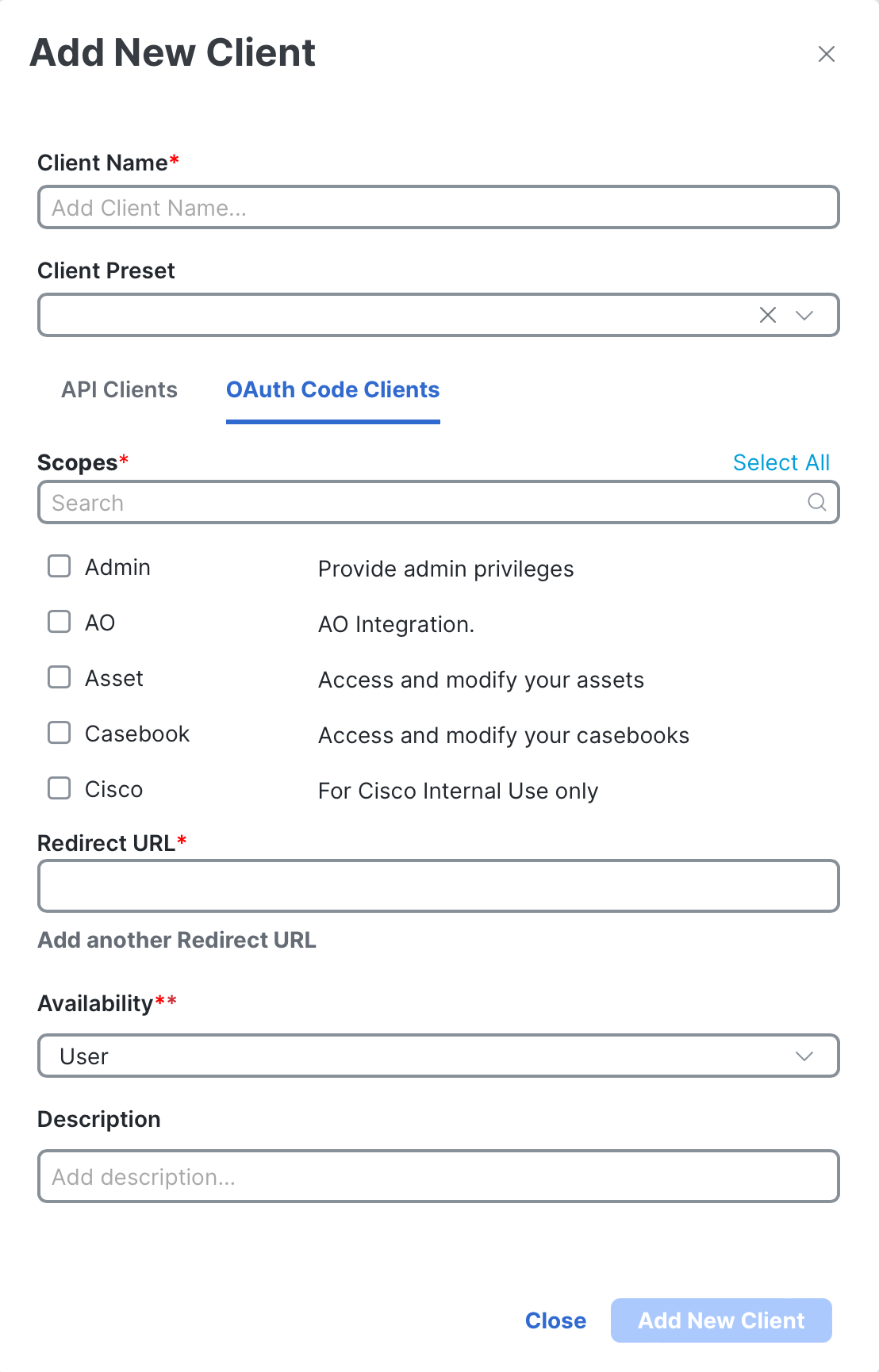

    Add New Client Form

  2. Click the OAuth Code Clients tab.

  3. Enter a Client Name and optionally, choose a Client Preset from the drop-down list.

    Note: If you choose a Client Preset, all of the scopes are pre-configured for a particular function.

  4. If you did not choose a Client Preset, check the check boxes for the scopes for which you want to grant privileges to the client. You can also click Select All to grant all scopes to the client.

  5. Enter the Redirect URL that the authorization server uses to redirect back to the application.

    Note: The URL must start with https:// and should not contain the asterisk (*) character.

    Click Add another Redirect URL to enter multiple URLs.

  6. Choose the Availability from the drop-down list. You can make the client available to User or Organization.

    If you choose Organization (recommended), only members of your organization have the ability to approve the client.

    Note: If you do not select an Availability option, it is set to Organization by default.

  7. Optionally, enter a description in the Description field and click Add New Client.

    The Client Id and Client Password are generated and are displayed in the Add New Client dialog box.

    Client Id and Password

    Note: The Client Password cannot be recovered after you close the window. Be sure to securely store it where you have access to it later, if needed. If you lose or disclose the client password, you must delete the API client and create a new one.

    The API Client is tied to your user identity. If your user identity loses privileges, then your API Client will also lose those privileges. All actions taken by the API Client will be done in your name, and recorded as your actions. If your access to the application is revoked, then your API Client will no longer be valid.

  1. Choose Administration > API Clients in the navigation menu.

  2. In the list of API clients, click the API client link you want to view details in the list. The view-only dialog box displays the scopes assigned to the API client, availability of the API client, approval status, and description.

  3. Click Close.

  1. Choose Administration > API Clients in the navigation menu.

  2. In the list of API clients, click the (Delete) icon in the Actions column of the API client you want to delete from the list.

  3. Click Delete to confirm the action.
